Injection Molding Design Guidelines
Introduction
Injection molding is one of the most widely used manufacturing processes for producing plastic parts at scale. However, designing parts that are easy to manufacture, cost-effective, and free of defects requires a solid understanding of design for manufacturing (DFM) principles.
Many plastic parts appear correct in CAD but fail during production due to issues such as poor wall thickness control, insufficient draft angles, or incorrect feature design. These mistakes often lead to costly tooling modifications, production delays, and quality problems.
This guide provides a structured overview of the key design principles used in injection molding. Each section links to a detailed engineering guide covering specific design topics in depth.
Quick Design Rules
Core Injection Molding Design Principles:
Use ribs instead of increasing wall thickness
Design bosses with controlled thickness and reinforcement
Avoid sharp corners and use proper radii
Consider material flow and cooling during design
Engineering Overview
Injection molding is a thermal and pressure-driven process where molten plastic is injected into a mold cavity and then cooled to form a solid part.
The quality of the final part depends heavily on how the material flows through the mold and how it cools. Poor design decisions can disrupt this process and result in defects such as:
-
sink marks
-
warpage
-
weld lines
-
short shots
-
dimensional instability
Designing for injection molding requires balancing multiple factors including material selection, geometry, cooling behavior, and tooling constraints.
Injection Molding Design Guidelines
Below are the most important design areas. Each topic includes a link to a detailed guide with practical engineering rules and real manufacturing examples.
Wall Thickness Design
Wall thickness is one of the most critical factors affecting part quality and production cost. Uneven or excessive thickness can cause sink marks, warpage, and long cycle times.
→ Read the full guide: Injection Molding Wall Thickness Design
Wall thickness guidelines for injection molded plastic parts
Draft Angle Design
Draft angles allow parts to be ejected from the mold without damage. Insufficient draft leads to sticking, surface damage, and increased tooling wear.
→ Read the full guide: Draft Angle in Injection Molding

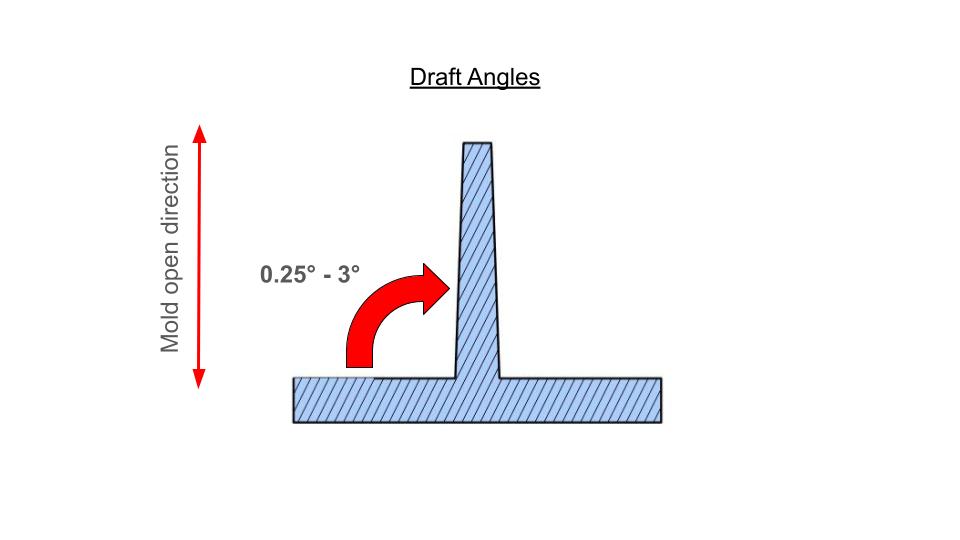

Draft Angle Design guidelines for Injection Molding
Rib Design
Ribs are used to increase stiffness without adding excessive material. Incorrect rib design can cause sink marks and poor material flow.
→ Read the full guide: Rib Design for Injection Molded Parts
Reinforcement Ribs guidelines for injection molded plastic parts
Boss Design
Bosses are used for mounting and fastening. Poorly designed bosses often lead to sink marks, cracking, or assembly issues.
→ Read the full guide: Injection Molding Boss Design

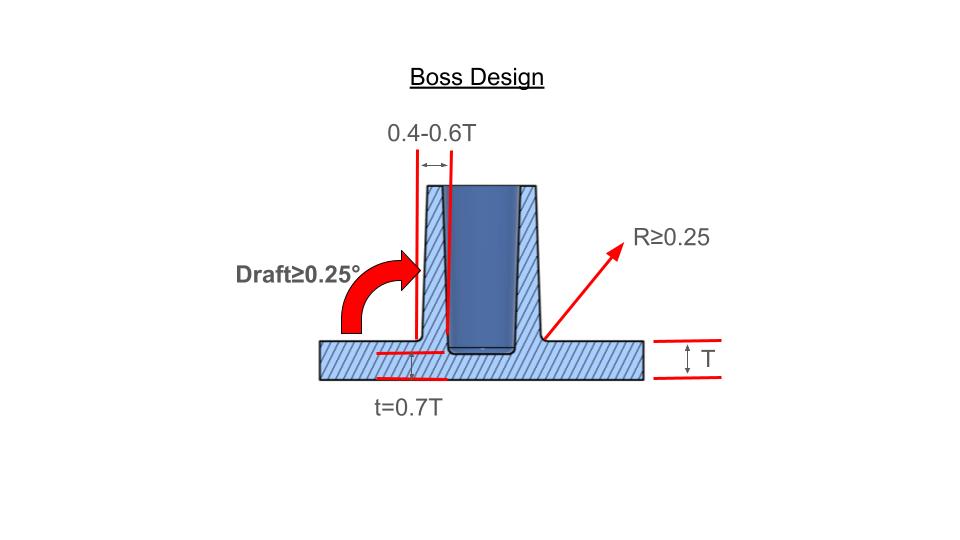

Boss Design Guidelines for Injection Molding
Snap-Fit Design
Snap-fits enable assembly without fasteners. Proper design ensures durability, flexibility, and ease of assembly.
→ Read the full guide: Snap-Fit Design for Plastic Parts

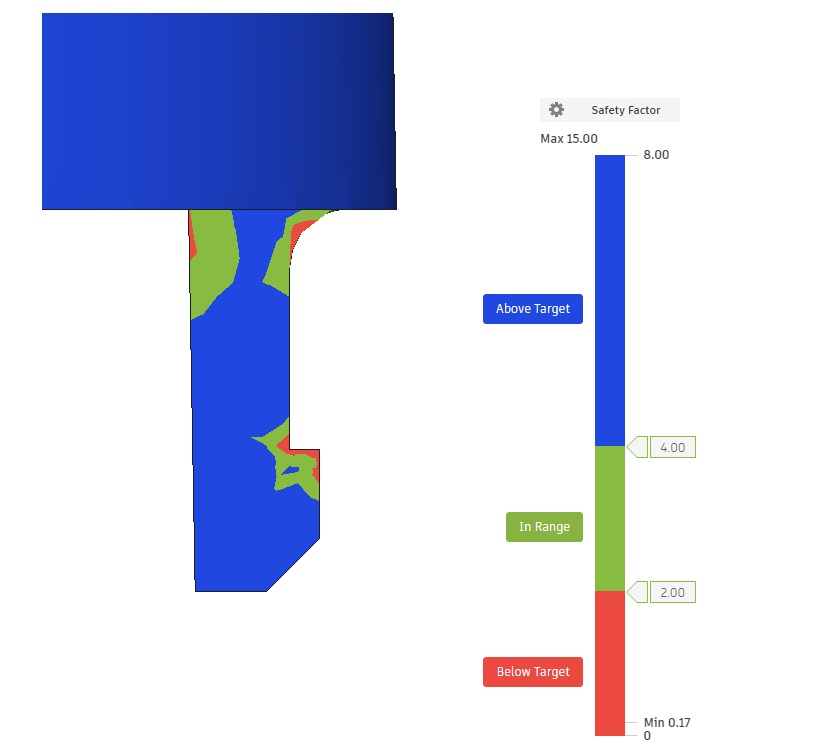

Snap Fit Design Injection Molding
Radii and Corner Design
Sharp corners create stress concentrations and restrict material flow. Proper radii improve strength and manufacturability.
→ Read the full guide: Radii Design in Injection Molding
Parting Line Design
The parting line defines how the mold opens. Poor placement can lead to visible defects and increased tooling complexity.
→ Read the full guide: Parting Line Design for Injection Molded Parts
Gate Location and Flow
Gate placement affects material flow, weld lines, and cosmetic quality. Proper gate design is critical for part performance.
→ Read the full guide: Gate Location in Injection Molding
Material Selection
Choosing the correct plastic material affects strength, flexibility, cost, and manufacturability.
→ Read the full guide: Plastic Material Selection for Injection Molding
Common Design Mistakes
Some of the most common issues seen in production include:
-
large thick sections behind cosmetic surfaces
-
missing or insufficient draft angles
-
abrupt thickness transitions
-
poorly reinforced bosses
-
incorrect material selection
These issues often result in costly redesigns and delays during tooling and production.
Real Manufacturing Example
A consumer electronics housing was designed with thick internal bosses connected directly to an external cosmetic surface.
During production, the part developed visible sink marks on the outer surface due to uneven cooling.
The issue was resolved by reducing boss thickness and adding reinforcing ribs, resulting in improved part quality and reduced cycle time.
This type of problem is common and highlights the importance of proper wall thickness control and feature design.
Design Checklist
Use this checklist when designing injection molded parts:
Include draft angles on all vertical faces
Use ribs instead of thick walls
Avoid sharp corners and include radii
Design bosses with controlled thickness
Consider cooling and material flow
Learn Injection Molding Design
Understanding these principles in theory is important, but applying them correctly in real designs requires practical experience.
Injection Molding Design Masterclass
This training covers:
-
complete injection molding design rules
-
real manufacturing case studies
-
practical DFM workflows
-
common failure scenarios
Includes 18+ design modules
View the full course →
Related Design Guides
-
Injection Molding Wall Thickness Design
-
Draft Angle in Injection Molding
-
Rib Design Guidelines
-
Boss Design for Plastic Parts
-
Snap-Fit Design Guide
FAQ
What are the most important injection molding design rules?
The most important rules include maintaining uniform wall thickness, adding draft angles, and designing features such as ribs and bosses correctly.
Why do injection molded parts fail in production?
Most failures are caused by poor design decisions such as uneven wall thickness, incorrect draft angles, and poor material flow.
How can I reduce injection molding costs?
Costs can be reduced by optimizing wall thickness, simplifying geometry, reducing cycle time, and designing parts for efficient manufacturing.
Conclusion
Injection molding design requires a combination of engineering knowledge and practical manufacturing experience.
By following the design guidelines outlined in this guide and exploring each topic in detail, designers can significantly improve part quality, reduce production costs, and avoid common manufacturing problems.
